Can you use 9mm sintered stone for a kitchen countertop? This comprehensive guide reveals the engineering truths behind countertop thicknesses, overhang limits, and the exact support systems needed to make ultra-thin slabs work safely in your kitchen design.
Whether you are designing a dream kitchen island or planning a highly durable prep area, "How thick should the countertop be?" is a core question faced by every designer, fabricator, and homeowner.
In recent years, with the rising popularity of Sintered Stone and large-format porcelain slabs, the market has seen an influx of ultra-thin options. Among them, the feasibility of using 9mm thin slabs for main kitchen countertops has sparked widespread debate.
This article dives into manufacturer installation manuals and industry engineering standards to reveal the truth: The "ideal thickness" for a kitchen countertop is never just a random number. It is a safe operational zone determined by the combination of material system, substrate support, cutout edge treatment, and daily usage load.
1. Quick Takeaways & Application Scope
If you are currently selecting materials for your project, here are the quick guidelines regarding 9mm sintered stone countertops:
- Not Recommended as a "Default" Thickness for Main Prep Areas: In heavy-duty cutting zones or areas near large sinks and cooktops, industry standards highly recommend 12mm or 20mm as the default thickness.
- 9mm Can Work, But Requires a "Systematic Approach": Using a 9mm slab requires continuous full-coverage substrate support, 100% adhesive coverage (no hollow spots), and dedicated structural steel brackets for any seating overhangs.
- The Composite Thickness Approach: Some premium sintered stone systems achieve 9mm via a "6mm + 3mm" composite structure. While visually stunning, its structural rigidity is still lower than a solid 12mm slab.
💡 Project Tip from StoneFunTek: We supply a wide range of premium sintered stone slabs. For large-format kitchen island applications (e.g., 1600×3200mm), we consistently recommend 12mm as the most robust and reliable countertop thickness.
2. Why Do a Few Millimeters Matter? The Engineering Logic
Many clients ask: "Sintered stone is incredibly hard, so why does a 9mm slab crack more easily than a 12mm one?" The answer lies in the difference between Hardness and Rigidity.
In engineering, the flexural rigidity (D) of a slab increases exponentially with the cube of its thickness (h³). Let's look at the numbers:
- 9mm vs. 12mm: A 12mm slab is approximately 2.37 times stiffer than a 9mm slab.
- 9mm vs. 20mm: A 20mm slab is approximately 11 times stiffer than a 9mm slab.
This means that when facing unsupported spans, heavy impacts, or seating overhangs, a slab that is just 3mm thinner faces exponentially higher risks of deflection and micro-cracking.

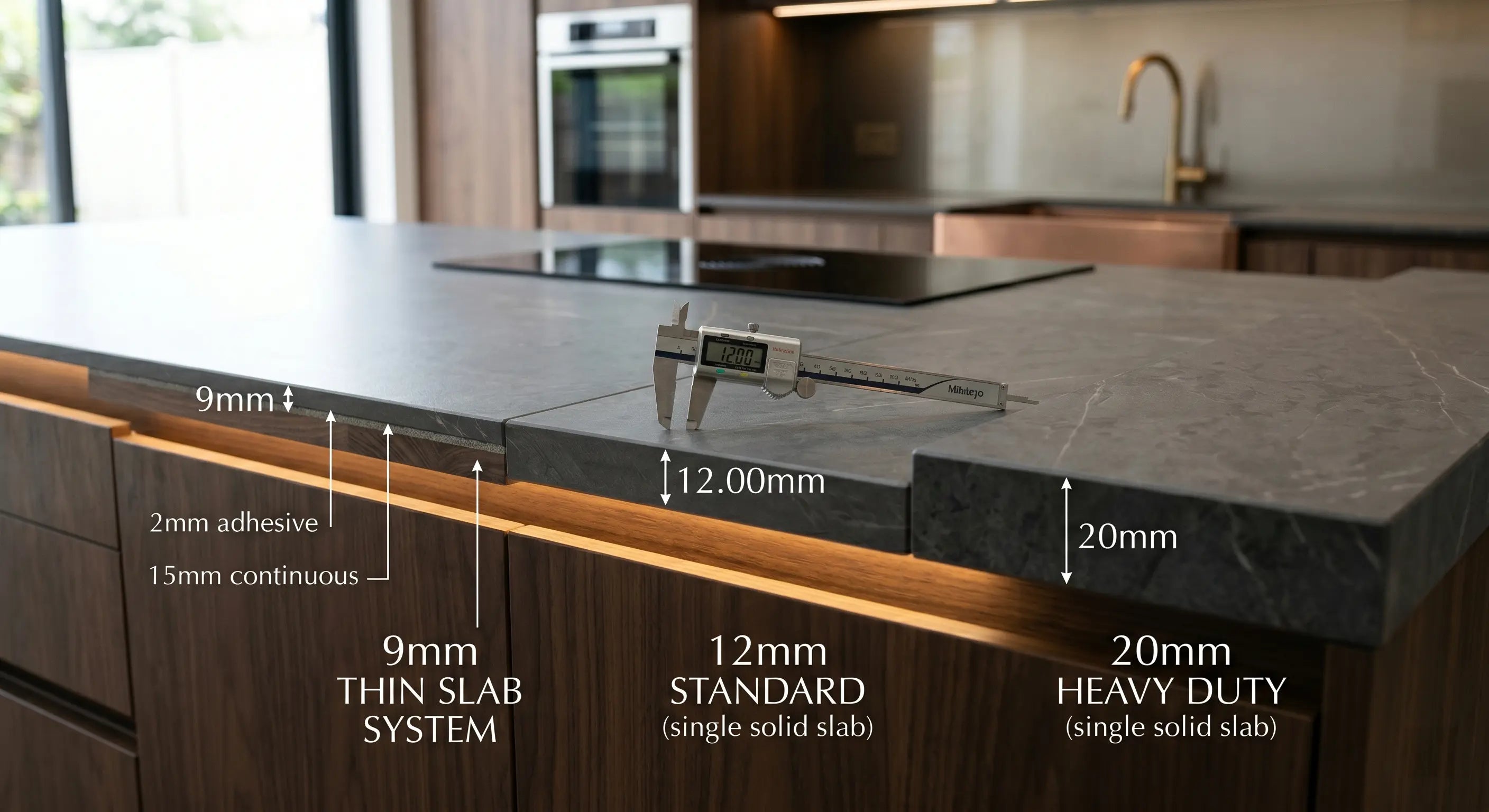

3. Standard Thicknesses for Common Countertop Materials
To provide context, here is a quick breakdown of recommended thicknesses across different material types:
| Material Type | Common Countertop Thickness | Engineering Notes & Recommendations |
|---|---|---|
| Sintered Stone / Porcelain | 12mm, 20mm | 12/20mm highly recommended. 9mm must be used with continuous substrate support. Thicker slabs offer better overhang tolerance. |
| Quartz / Engineered Stone | 20mm, 30mm | Both 20mm and 30mm are robust. Overhangs are generally limited by the "1/3 depth rule" before requiring brackets. |
| Natural Granite / Marble | 20mm, 30mm | 30mm offers greater unsupported span allowances, though it significantly increases the weight load on cabinets. |
| Solid Surface (Acrylic) | 12mm, 19mm | 6mm is officially restricted to vertical applications only. Bar overhangs strictly require support strips. |
4. The Hard Prerequisites for Using 9mm Slabs
If your design strictly requires an ultra-thin 9mm profile, you must demand the following systematic installation techniques from your fabricator:
- Continuous, Deflection-Free Substrate: Never support a 9mm slab directly on open cabinet frames or sparse wooden slats. It requires a rigid, moisture-resistant underlayment (like marine plywood or fiber cement board) providing 100% bottom coverage.
- 100% Adhesive Coverage: The adhesive layer must fully coat the substrate (approx. 2-3mm thick) with zero air pockets. Empty voids beneath the slab are the leading cause of impact fractures.
- Rounded Cutout Edges: Avoid sharp 90-degree internal corners when cutting holes for sinks or cooktops. The minimum inner radius should be ≥3mm (preferably 5mm+). Also, flush-mounted sinks are not recommended for 9mm slabs; upgrade to 12mm for such designs.
- Structural Solutions for Overhangs: A comfortable seating overhang requires 12 to 15 inches of knee space. This far exceeds the unsupported limit of a 9mm slab. Hidden steel brackets, corbels, or structural sub-frames are mandatory.
5. Scenario-Based Recommendations: Islands & Waterfall Edges
- Main Prep Counters: Prioritize 12mm. If heavy-duty capability is a must, 20mm is excellent.
- Kitchen Islands (with seating): 12mm or 20mm is ideal. Even with thicker slabs, excessive overhangs still require support beams.
- Waterfall Edges / Side Panels: If the waterfall edge is fully adhered to the side cabinet (no overhang), 9mm or thinner slabs work perfectly and create a sleek, modern visual.
- Undermount Sinks: Thickness is secondary here. The golden rule is: Let the support structure carry the sink's weight. Use dedicated sink support rails underneath, rather than relying on the countertop cutout edges to bear the load of a sink full of water.
6. Installation & Inspection Checklist
Once you've selected your slabs, ensure the installation goes smoothly by checking these key points:
- Cabinet Leveling: Cabinets must be perfectly level and secured before the substrate is installed.
- Seam Placement: Avoid L-shaped diagonal cuts. Ensure seams are kept far away from sink and cooktop cutouts.
- Thermal Expansion Gaps: Ensure a 2-3mm gap is left against the wall (filled with silicone) to allow for natural structural movement.
- Sink Support: Verify that independent support rails or harnesses are installed under the sink.
Ready to start your next kitchen project? Browse our latest collections of premium sintered stone or contact the StoneFunTek expert team for material selection and custom quotes.
