Sintered Stone in Architecture: What the Detail Must Prove

My most important material-analysis lesson is that a good slab can still become a bad architectural detail. The surface may pass its laboratory tests, yet the project can fail because the wrong fixing system was assumed, movement was not detailed, a polished finish was used where slip resistance mattered, or the approved sample never became an approved production batch.

When an architect asks me whether sintered stone is suitable for a facade, lobby floor or full-height wall, I do not begin with “yes.” I begin with questions: Which exact product? Which finish and thickness? What panel size? What substrate and fixing system? What wind, fire, moisture, impact and maintenance conditions? Who is engineering the assembly?

That is the difference between selecting a material and specifying a system.

Why the Existing “Durability” Conversation Is Too Shallow

Architecture pages often describe sintered stone as heat-proof, scratch-proof, non-porous, UV-proof and almost indestructible. Those words are easy to publish and hard to use in a specification. They also hide the important distinction between material performance and assembly performance.

A panel may have low water absorption, but the wall can still leak through badly designed joints or interfaces. A product may have a favorable reaction-to-fire classification, but the facade assembly still includes insulation, membranes, rails, adhesives, anchors and cavity barriers. A hard surface may resist abrasion, yet an unsupported corner or incorrectly handled cutout can still chip.

1. Start With the Exposure, Not the Pattern

The same visual can be asked to perform very different jobs. An interior feature wall mainly raises questions about substrate flatness, joint rhythm, adhesive compatibility, edge treatment and replacement access. A hotel lobby floor adds abrasion, slip resistance, wheeled traffic, cleaning chemicals and transitions. An exterior rainscreen adds wind pressure and suction, thermal movement, freeze-thaw or salt exposure, fire strategy, drainage, ventilation and anchor design.

Before choosing a slab, I would write a one-page exposure brief:

• interior, sheltered exterior or fully exposed exterior;
• vertical, horizontal, overhead or furniture application;
• dry, wet, food-contact, high-touch or aggressive-cleaning environment;
• pedestrian, trolley, impact or vandalism exposure;
• temperature range, direct sun, frost, coastal salts or pollution;
• required service access and realistic panel-replacement method.

This keeps the visual decision connected to the building condition. It also prevents the phrase “suitable for exterior use” from being treated as a complete facade specification.

2. Request Evidence for the Exact Product

“Sintered stone” is a material category, not a single certified product. Formulation, body, reinforcement, finish, thickness and test scope vary. I ask for documents that identify the exact product code being proposed, and I check whether the tested thickness and finish match the project.

If a sustainability target matters, I do not use “natural minerals” as a substitute for lifecycle evidence. Manufacturing energy, transport, slab yield, breakage, substructure, replacement and end-of-life all affect the result. An Environmental Product Declaration can help, but it must apply to the actual product and declared scope.

3. Detail the Assembly—and Name Who Owns It

One of the most useful lines I add to a discussion is: Who is the engineer of record for the cladding or support system? The slab supplier can provide product data and manufacturing constraints. The fixing-system supplier can provide components and tested configurations. The facade engineer must resolve loads, anchors, rails, movement and interfaces for the actual building. The installer must translate those documents into compliant workmanship.

For adhered interior panels, the design still needs a known substrate, flatness and moisture condition, compatible primer/adhesive, back-buttering method where required, joint size, perimeter movement allowance and cure sequence. For mechanically fixed or ventilated facades, the project additionally needs structural calculations, anchor layout, edge distances, rails and brackets, cavity/drainage strategy, insulation and fire-stopping coordination.

4. Let the Joint Become Part of the Architecture

Large format does not mean “no joints.” It means fewer, more deliberate joints. I prefer to establish the module before the color is finally approved. The module should coordinate slab yield, available faces, openings, corners, floor lines, movement zones, transport limits and replacement access.

A thin dark joint can disappear in a charcoal cement look but become highly visible in a pale vein. A directional pattern can make a one-panel replacement obvious if face orientation was never recorded. A bookmatched feature may look perfect in an elevation while creating unreasonable waste or fragile slivers around doors.

For every elevation, I would ask for a panel schedule that records product code, face or pattern orientation, cut size, joint width, fixing reference and location. The drawing should show external corners, internal corners, base and head conditions, openings, transitions to other materials and access panels—not only the flat middle of the wall.

Three Visual Languages, Three Different Details

These product examples are not automatic approvals for every application. They show how the visual character changes the architectural question that should be resolved in the mockup and shop drawings.

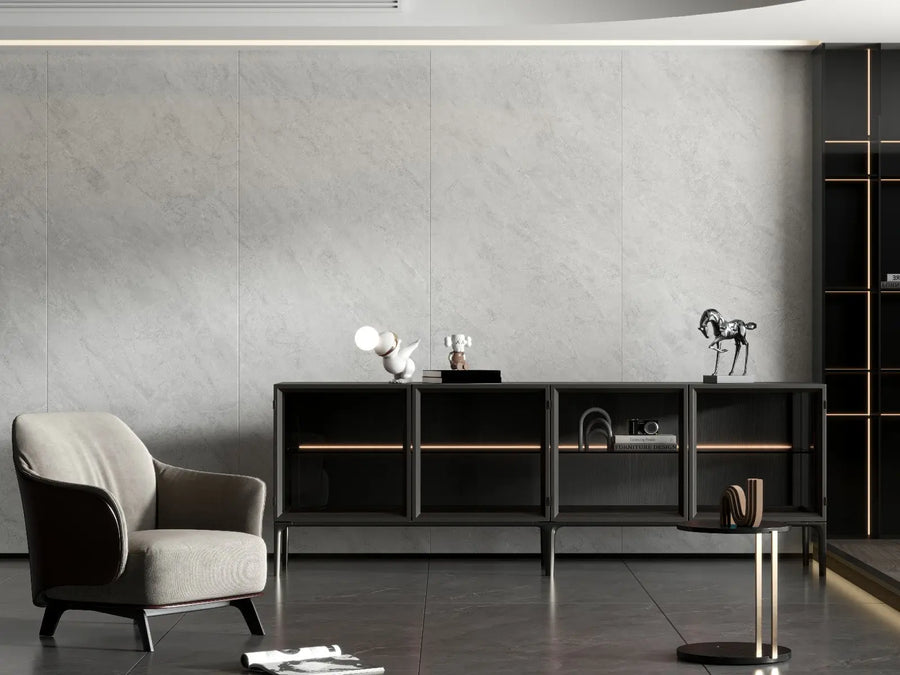

Quiet cement look

Dior Grey

Check face repetition, low-angle light, joint color and how the restrained movement reads across a large wall.

View the surface →

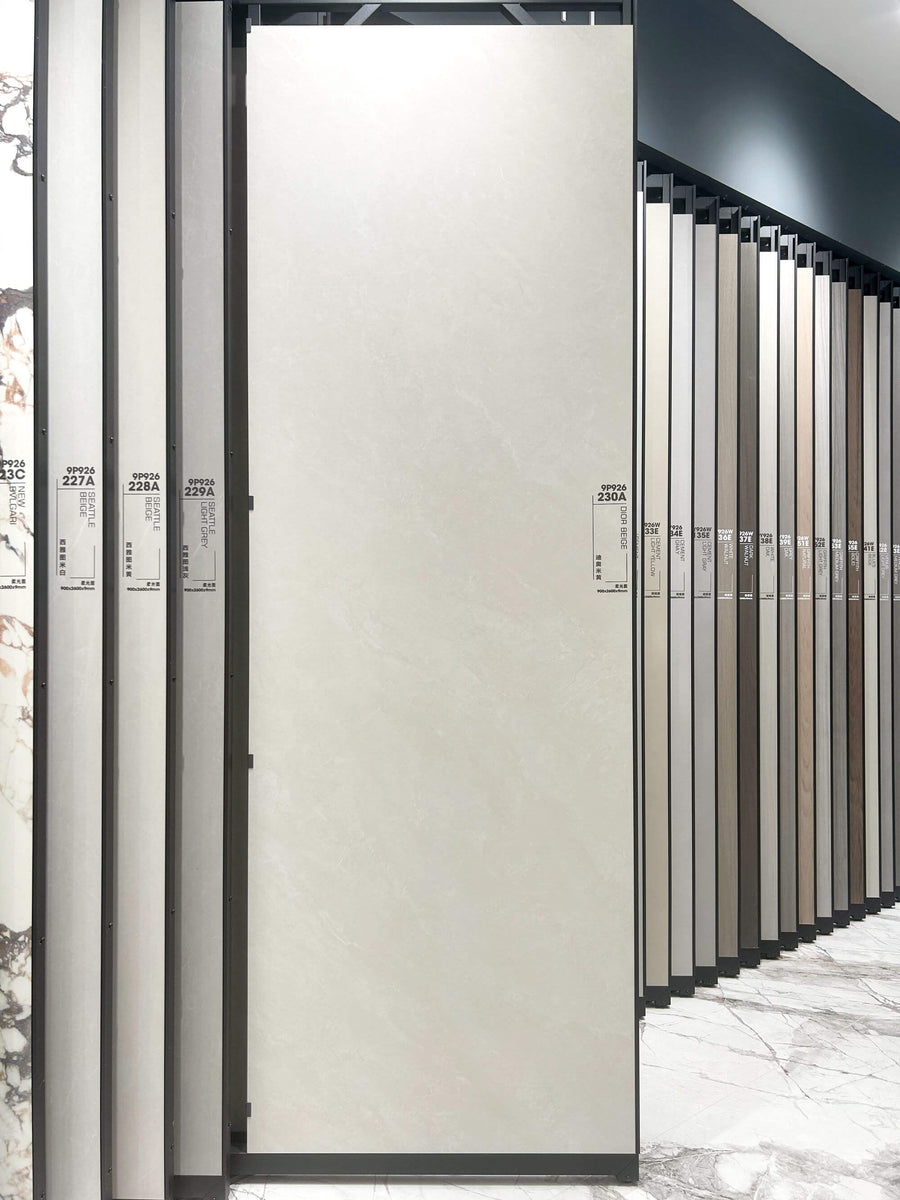

Warm neutral field

Dior Beige

Check undertone beside timber, paint and warm LEDs, then approve the same combination in the full-size mockup.

View the surface →

Directional stone movement

Roman Cave Stone Beige

Check vein direction, panel sequence, corner turns and whether replacement panels can preserve the intended rhythm.

View the surface →

5. Build a Mockup That Can Actually Fail

A small sample approves color and touch. It does not approve a wall. For an important interior or exterior assembly, I want the mockup to include the difficult conditions: a real joint, an outside corner, a cut edge, a fixing or adhesive zone, an interface with another material, lighting at the intended angle and the proposed cleaning method.

I have seen teams approve the center of a panel and discover the real disagreement at the corner. The architect expected a continuous stone expression; the installer expected a metal trim; the supplier had only been asked to quote flat cut panels. All three had answered their own question correctly, but nobody had asked the same question. A corner mockup would have exposed that gap early.

The mockup approval should record:

• color, finish, gloss and acceptable range of variation;
• joint width, joint material, color and tooling;
• edge, corner and transition treatment;
• panel flatness and acceptable lippage under project lighting;
• cleaning result after adhesive, sealant or construction residue;
• visible fixing or concealed-system workmanship;
• which mockup deviations are explicitly accepted—and which are not.

This follows the logic used in formal architectural specifications: an approved mockup establishes workmanship and appearance, but it should not silently approve departures from the contract documents. The design team should record any accepted change in writing.

6. Freeze Shop Drawings Before Production

For a multi-panel project, “send the slabs” is not a fabrication instruction. The supplier or fabricator needs approved elevations, panel IDs, dimensions, quantity, thickness, finish, face/orientation requirements, cutouts, edge finishing, reinforcement if specified, hole or anchor preparation, tolerances and packing sequence.

I prefer the packing order to follow the installation zones when practical. Crates should identify project, elevation or zone, panel range, gross/net weight and handling direction. If a panel is custom-cut, its ID should survive from the shop drawing to the label and packing list. That traceability matters when dozens of visually similar pieces arrive on site.

7. Inspect the Batch, Not Only the Reference Sample

Reference samples are useful at concept stage. Before production or shipment, approve the actual batch or agreed range. For directional or multi-face designs, request full-slab images and a face schedule. For large continuous areas, confirm that enough compatible material is reserved, including the project-agreed spare allowance.

The pre-shipment inspection should match the specification: identity, quantity, dimensions, thickness, surface condition, flatness or warpage criteria, edge condition, cutouts, panel IDs, packing, crate bracing and moisture protection where relevant. A generic “quality checked” stamp is not a project inspection plan.

For sourcing and batch-control details, use our separate sintered stone sourcing and batch-control guide. Keeping that procurement intent on its own page helps this article remain focused on architectural specification.

My Architecture Submittal Checklist

The Material Is Only as Strong as the Decision Chain

Sintered stone earns a place in architecture because it can combine large formats, controlled visuals and useful surface performance. But I would never specify it as a magic sheet that solves fire, waterproofing, structure and maintenance by itself.

The better question is not “Is sintered stone durable?” It is: Can this exact product, in this exact finish and panel size, be supported by the evidence, system detail, mockup and quality plan required for this building? When the answer is documented, the material becomes predictable. That is what a specification is supposed to achieve.
