Countertop Overhang: Standard Sizes, Seating & Support

The everyday cabinet edge: start with the measuring point

A small front overhang lets the countertop cover the cabinet fronts and gives drips a chance to fall clear of them. At an exposed end, a similar projection can continue the edge line. A side against a wall has a different job: it needs a fitted junction and the specified movement gap, rather than a matching lip.

The familiar 1½-inch number often comes from a 25½-inch-deep top over a nominal 24-inch cabinet box. It is a useful starting point for that arrangement. It does not mean the top always extends 1½ inches beyond the drawer fronts. Overlay doors, face frames, end panels and the position of the cabinet against the wall change the result.

For example, take a box whose front plane sits 24 inches from the rear measuring plane. Put a 25½-inch top over it and the box projection is 1½ inches. If the closed drawer front sits ¾ inch ahead of the box, the visible projection beyond that drawer is ¾ inch. Both numbers describe the same countertop correctly.

Write “¾ inch beyond closed drawer front” on the drawing if that is the appearance you want. A bare note saying “1½-inch overhang” leaves the fabricator to guess which plane you meant. The NKBA drawing guidance specifically calls for edge details that show the relationship to the cabinet face and inset doors.

A flush or nearly flush edge is also possible when the cabinet system, edge treatment and installation tolerances are designed for it. Specify that detail deliberately. An uneven cabinet line becomes more noticeable when there is almost no projection to accommodate it.

Leave clear knee space beneath the seating edge

Choose the surface height first. A table-height extension, counter-height island and raised breakfast bar need different knee depths. The NKBA kitchen planning guidelines recommend the following space for each seated diner.

Swipe sideways on a phone to compare; tap a photo to enlarge.

Surface height	Clear knee depth	Clear width per diner
30 in / 762 mm — table	18 in / 457 mm	24 in / 610 mm
36 in / 914 mm — counter	15 in / 381 mm	24 in / 610 mm
42 in / 1,067 mm — bar	12 in / 305 mm	24 in / 610 mm

Measure knee depth horizontally from the eating edge to the nearest obstruction under the top. A cabinet back, decorative panel, apron or projecting corbel can reduce it. Check the height under the underside as well: a deep apron can leave the top at the right height while squeezing the person's thighs.

For a counter-height island used for meals, choose the 15-inch clear depth when the room permits. A 12-inch projection may suit brief perch seating, but it falls short of that counter-height recommendation. A 10-inch ledge is tighter again. Test a mock-up with the intended stool and the people who will use it before accepting a reduced depth.

These are planning recommendations. Check the requirements for accessible seating separately when that is part of the project.

Try the actual stool. A backrest, arms and a wide seat affect how far it tucks under the edge and how much room it occupies behind the diner. Do not calculate the overhang by subtracting an assumed stool depth from a person's knee space; draw the actual stool under the proposed section.

Measure three different distances on a seating edge

A seating countertop can have three relevant horizontal measurements: the projection beyond the finished cabinet panel, the clear knee depth, and the slab's unsupported projection beyond its last effective support. They are sometimes equal on a simple sketch. Once support hardware is added, they usually need separate dimensions.

Suppose a finished cabinet back is 15 inches behind the eating edge. That gives a nominal 15-inch cabinet-to-edge projection. A broad corbel jutting into the seating bay can make the usable knee space smaller. A steel member beneath the slab can reduce its unsupported reach while preserving more legroom, provided it sits where the approved support detail requires.

Mark both the support edge and the cabinet panel in the section. Otherwise, a comfortable plan view can conceal hardware that obstructs the knees.

How far can a countertop overhang without support?

There is no useful universal answer for all granite, quartz, laminate, porcelain and sintered stone. The approved limit belongs to the selected product, thickness and assembly. A thicker-looking edge can be a mitred apron around a thinner slab, so appearance alone cannot establish the slab's strength.

Read the selected manufacturer’s instructions for:

• The actual slab or core thickness and the permitted projection for that product.
• The depth, spacing and stiffness of the cabinet or frame support.
• Cutouts, seams, edge build-up and the location of concentrated loads.
• The required reinforcement, bracket arrangement and fixing into the supporting structure.

Rules quoted as “10 inches without support” or “two-thirds of the top must be supported” leave out these details. They also vary between products. IKEA's pre-cut countertop guidance, for example, gives approximately 10 inches as the point at which its pre-cut tops need supporting legs. That instruction concerns those laminate and thick-veneer tops. It is not an allowance for a thin sintered-stone slab.

For engineered quartz, use the selected brand's installation document rather than a generic stone chart. Cambria's technical guideline addresses thickness, cabinet depth, cutout support and additional structural support together. Reading a single projection threshold out of that document would miss the other requirements governing the same installation.

Natural stone also requires the fabricator to assess the actual piece, including fissures, veins and cutout positions. Changing the material after cabinetry and support hardware have been ordered can change the whole seating detail.

Funtek sintered stone: plan the support before the seating edge

For Funtek worktops, the fabrication and installation manual gives these projection values for level, uniformly supported cabinetry under normal residential loading.

Swipe sideways on a phone to compare; tap a photo to enlarge.

Actual slab thickness	Without added reinforcement	With specified steel/aluminium reinforcement
12 mm	Up to 100 mm / 3.94 in	Up to 150 mm / 5.91 in
15 mm	Up to 150 mm / 5.91 in	Up to 200 mm / 7.87 in
20 mm custom production	Confirm the project support plan	Confirm the project support plan

Use the specified reinforcement. Larger projections and concentrated loads, commercial use, waterfall ends, mitred aprons, joints or long spans require a reviewed frame plan.

Give sinks independent mechanical support and review openings and cabinet voids with the free edge.

Use the countertop thickness guide to choose the slab and edge arrangement. Confirm the projection and supporting frame on the fabrication drawing for that choice. A 6 mm decorative skin should not be treated as a self-supporting kitchen top.

Choose support that leaves the seating bay usable

Steel brackets and concealed frames

Concealed support works well when an open seating edge is a priority. It needs a structural fixing route into the cabinet, blocking or frame and sufficient stiffness beneath the slab. A bracket screwed only into a thin decorative back panel has a very different load path from one secured to the intended structure.

Review the arm reach, spacing, anchorage and slab contact together. Set the support position before cutting or cabinet finishing so it can be recessed or coordinated without weakening the cabinetry. The hardware supplier's rating must apply to the proposed fixing and loading, not just to the bracket in isolation.

Corbels, legs and end supports

Corbels are visible and can suit a furniture-style island, but they take up space under the edge. Put them between seating bays where the support design permits and check knees against the actual profile.

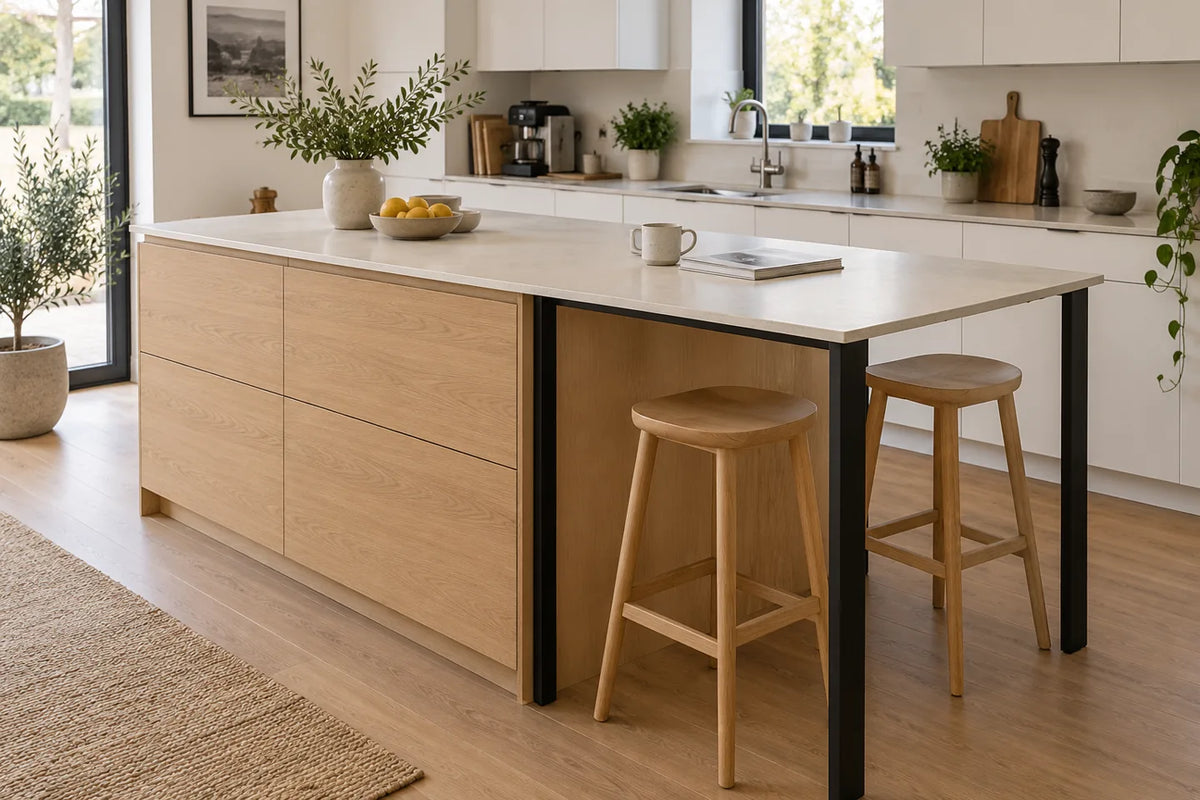

Legs or posts can support a deeper table-like extension while keeping a thin stone top. Place them so a diner can get in and out and so the base can be fixed as designed. A vertical waterfall panel can also be part of an approved assembly, but its presence alone does not prove that the middle of a long edge is supported.

Coordinate the hardware with the cabinet supplier and fabricator before the cabinet is built. Retrofitting it after the top arrives often leaves the fixings exposed.

An island example: turn knee space into an overall depth

Consider a rectangular island with a 24-inch finished base assembly, including its specified fronts and back panel. Assume a 1-inch working-side projection and a 15-inch seating-side projection to a back panel that does not intrude into the knee space. The resulting top depth is:

This is a layout calculation, not a support approval. It uses a finished 24-inch assembly; a nominal 24-inch box with extra fronts and a back panel would produce a deeper result. Keep the 15-inch seating bay clear when the supporting frame is drawn.

For three diners, the 24-inch width per person in the seating recommendation gives 72 inches (1,829 mm) of clear seating frontage. Check the usable space between legs, panels and other obstructions, rather than assuming the countertop's overall length is all available for seating.

Now compare a 12-inch and 15-inch projection along that 72-inch edge. The extra 3 inches adds 216 square inches, or 1.5 square feet, to the finished top. The purchase cost will not necessarily rise by that exact area proportion: usable slab dimensions, cutting layout, edge work and the frame can change the quotation.

The standard countertop depth guide covers the full front-to-back measuring method. For broader island layout choices, use the kitchen island with seating guide. Record the actual finished part dimensions before checking how they fit a slab.

Check the room from the finished countertop edge

Moving a seating edge 3 inches outward removes 3 inches from the space behind it unless something else moves. A plan measured from cabinet boxes can therefore look comfortable while the finished room is tight.

NKBA recommends edge-to-obstruction clearance behind seating of 32 inches with no passing traffic, 36 inches to edge past a diner and 44 inches to walk past. Its work-aisle recommendations are 42 inches for one cook and 48 inches for multiple cooks. Treat these as planning guidance and check the requirements for the actual project.

Draw the stools occupied and pulled back, then open nearby dishwasher, oven and refrigerator doors on the plan. A passage that works while all stools are tucked away may fail during a meal. Avoid gaining knee room by taking essential access from the working side.

If the room cannot accommodate the desired island depth, consider a shorter seating run, a table-height extension elsewhere or a separate dining surface. Cutting the knee depth down to a narrow ledge is rarely the best answer for everyday meals.

Confirm the overhang on the drawing before fabrication

Measure after the cabinets are fixed, level and fitted with the relevant fronts and panels. Establish a consistent front line across the run rather than following each small cabinet variation. Record the as-built condition and the desired finished edge separately.

1. Label each edge as working, seating, exposed end or wall junction.
2. State the reference plane for every projection: box, closed front, finished back panel or effective support edge.
3. Show the slab thickness, edge profile, seams and all openings on the same current drawing.
4. Add a section through the seating edge showing knee space, support members and their structural fixing.
5. Confirm appliance clearances, stool positions and circulation against the finished edges.
6. Approve the complete dimensions and support detail before cutting.

For an existing countertop, do not assume a strip can simply be bonded onto the edge to create seating. A new projection needs a continuous supporting arrangement, a planned joint if one is used, and a finishable edge. Replacing the island top or adding a separately supported extension may be a more workable route.

Funtek supplies sintered-stone slabs and cut-to-size countertop pieces. Send the cabinet plan with each edge dimension, selected thickness, quantity and destination. For a seating overhang, include the proposed support section so the material and fabrication review cover the actual assembly.
